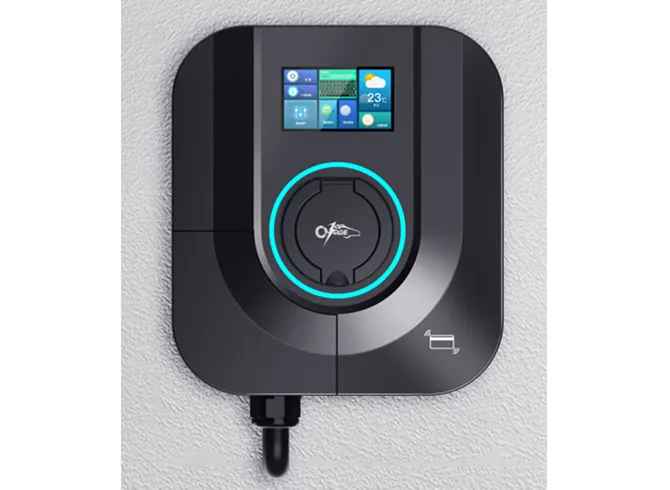

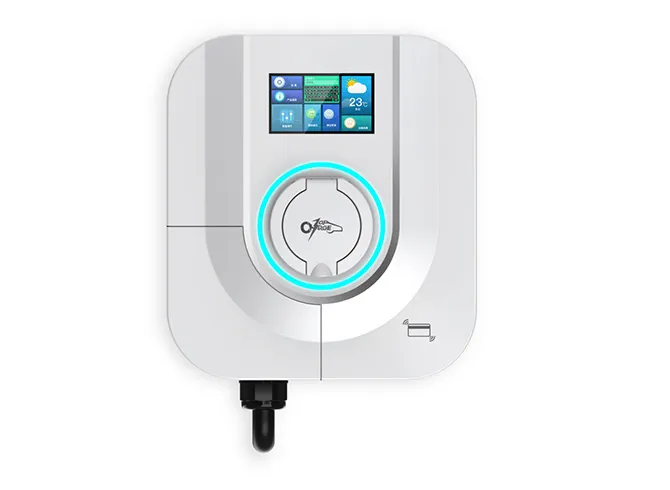

Featuring a sleek and user-friendly LCD screen, this charging station offers a seamless human-computer interaction, allowing users to easily monitor and control the charging process. With a maximum power of 3phase-22kW, this charging station delivers fast and powerful charging capabilities, ensuring that your electric vehicle is ready to hit the road in no time.
| General Information | |||
| Charging Mode | Mode 3 (IEC 61851-1) | ||
| Input/Output Power&Current Rating | 7kW/32A Max | 11kW/16A Max | 22kW/32A Max |
| Input/Output Voltage Rating | 230Vac±10%, single phase, 50/60Hz, L+N+PE | 400Vac±10%, Three phases 50/60Hz, L1+L2+L3+N+PE | |
| Charging Interface | Configuration 01: IEC 62196-2 Type 2 tethered plug (Case C) | ||
| Configuration 02: IEC 62196-2 Type 2 socket (Case B) | |||
| Metering | Onboard metering chip, Accuracy: 1% | ||
| Internal RCD | AC 30mA + DC 6mA | ||
| Protection | Overcurrent, Overvoltage, Undervoltage, Residual current, Over temperature, Ground fault(optional), Integrated surge protection | ||
| User Interface | |||
| Display & Support Languages | 4.3-inch screen (optional) | ||
| Status Indication | LED strip | ||
| User Authentication | RFID card, QR code, APP (optional) | ||
| RFID Reader | ISO/IEC 14443 A | ||
| Communication | |||
| Network Interface | Bluetooth & Wi-Fi， Ethernet，4G（optional） | ||
| Protocol (EVSE & Backend) | OCPP1.6J | ||
| Protocol (EVSE & EV) | Control pilot (default) | ||
| Environmental | |||
| Operation Temperature | 一30°C to 50°C | ||
| Storage Temperature | 一40°C to 85°C | ||
| Humidity | 5% to 95% no condensation | ||
| Altitude | ≤ 2000m | ||
| Mechanical | |||
| IP Rating | IP65 | ||
| IK Rating | IK 10 (Screen is IK08) | ||
| Cooling | Natural cooling | ||
| Charging Cable Length | 5 m or 8 m (optional) | ||
| Dimensions (WxHxD) | / | ||
| Weight | / | ||

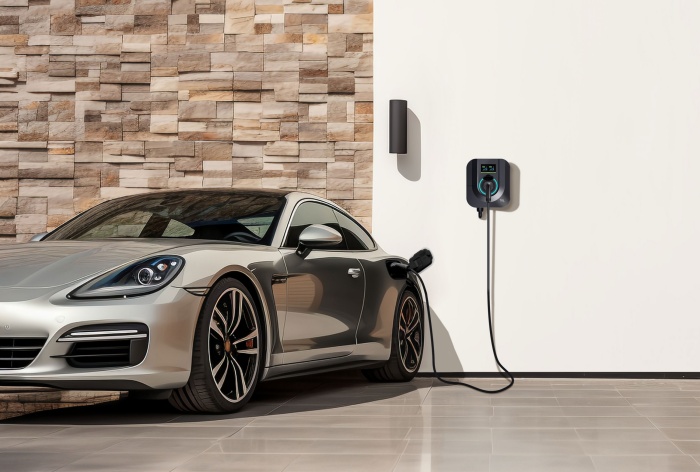

| Installation | Wall mounting, Pole mounting (Pole is optional) | ||
| Certification and standards | |||
| Standards and compliance | IEC 61851-1, IEC 61851-21-2, IEC 62955 (RCD) | ||
| Certification | CE，UKCA compliance | ||
Benefits
1. Multiple LED indicator
2. Clear ircons on screen
3. Adjustable power as needed
4. Multiple connectivitiy: LAN, Wi-Fi and Bluetooth(4G optional)
5. Easy and Simple installation
Features
1.OTA Remote Firmware Updates
2.OCPP1.6J Fully Compliance
3 4.3 "LCD display
Commercial Area
Public Parking Garage
Residential Area
